1/12
L-bracket lounge with bleacher, stacks and constellation graphic. The field of crosses maps the star constellation Leo - a coded reference to NYPL's ubiquitous lion mascot. © Michael Moran.
2/12
Highback reading lounge with low stacks and Media Vitrine. © Rice+Lipka.
3/12

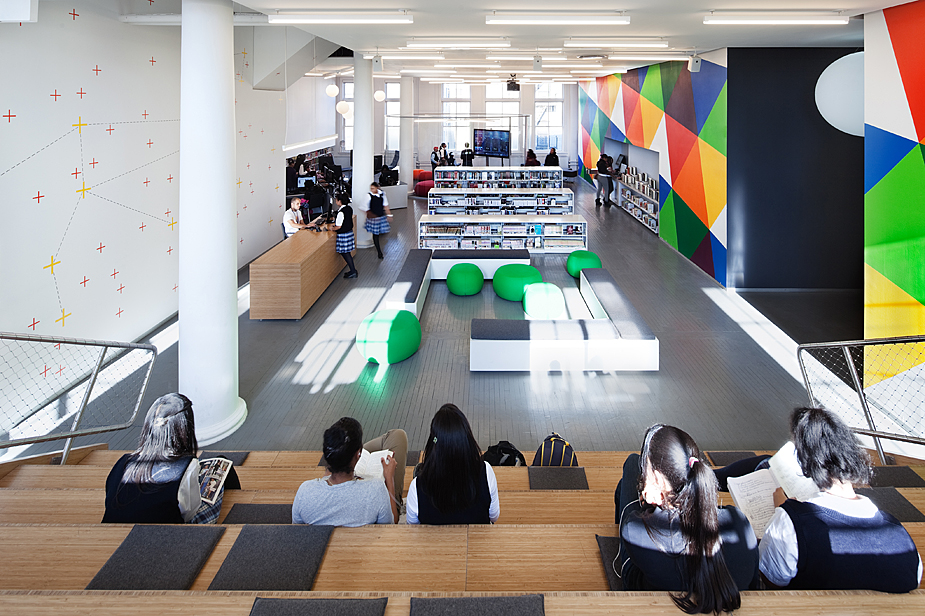

Overview looking north from top of bleacher. © Michael Moran.
4/12
Rolling L-bracket lounge, tiered stacks overview looking north. © Rice+Lipka.
5/12
Bleacher, entry, L-bracket lounge with color field. © Michael Moran.
6/12
L-bracket lounge with bleacher, stacks and constellation graphic. The field of crosses maps the star constellation Leo - a coded reference to NYPL's ubiquitous lion mascot. © Rice+Lipka.
7/12
Bleacher and L-bracket lounge/performance zone. © Rice+Lipka.
8/12

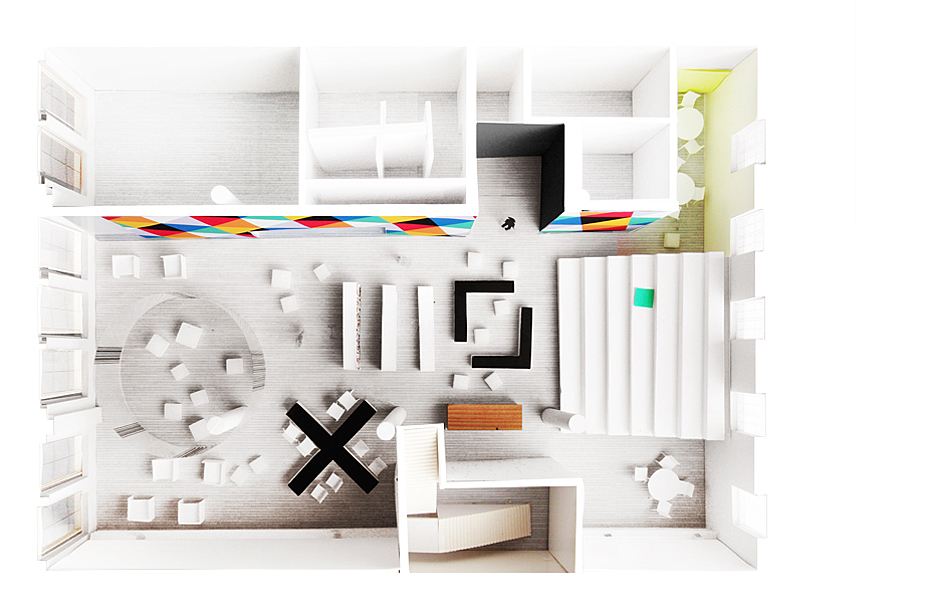

Top overview of physical model.
9/12
Programmatic zones diagram.
10/12

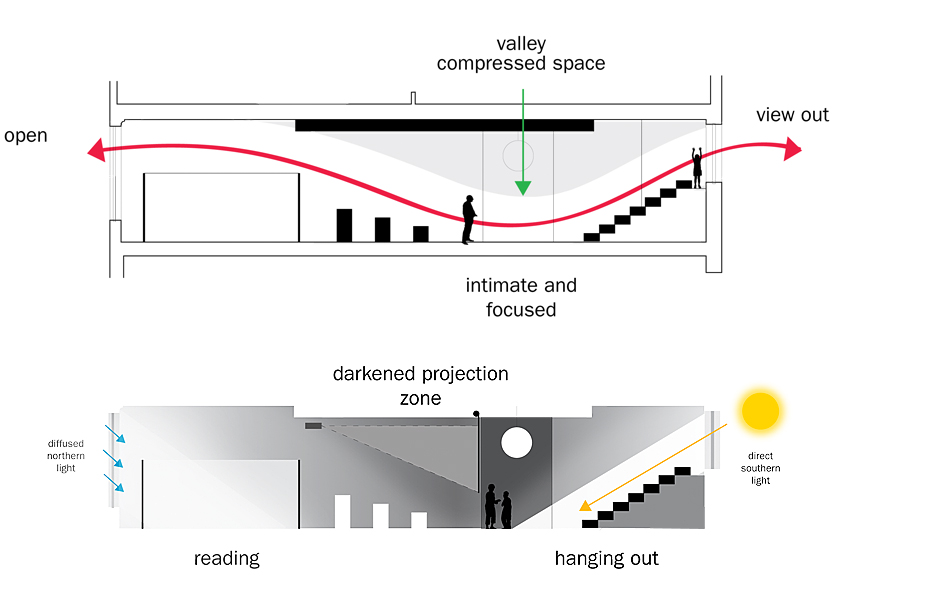

Sectional diversity and daylighting conditions diagrams indicating focus on performance zone and organizational impact of direct, indirect and low light areas.
11/12
Media vitrine. © Michael Moran.
12/12

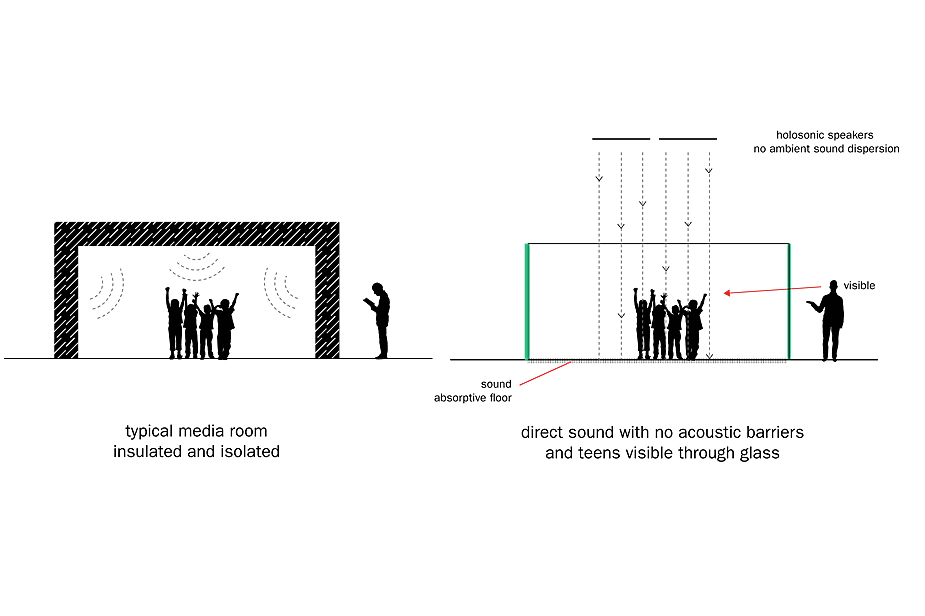

The Vitrine flips on its head the notion that multi-media spaces must be dark and hyper-isolated. Sound is contained by using four Holosonic speakers that a produce a vertical column of short wavelength sound that does not propagate.

HAMILTON GRANGE LIBRARY TEEN CENTER

New York Public Library, New York, NY

Proposal 2009
Project 2010-11
Completion 2011-12

New York's Public Library's first full-floor dedicated teen space is situated within Harlem's landmark Hamilton Grange Branch. The 4,000 sf space challenges the norms of library design to provide a contemporary, more open, social, technology-rich environment that fully engages neighborhood youth. The Center's cylindrical glazed media room exposes the physicality of NYPL interactive gaming programs and organizes the spaces around it, including X-Bar computer zone, Highback Reading Lounge, Exam Study Niche, and a day-glo Snack & Chat Niche (a 1st time experimental break from the normal prohibitions), rolling L-bracket Lounge, and tiered book stacks. A bamboo bleacher provides access to street views and acts as both a sunny hang-out zone and large group seating area for live performance and screenings. nypl video>

Winner of the 2013 National AIA/ALA Library Award, 2014 International ALA/IIDA Library Award, 2012 AIA New York State Award of Merit, and the 2012 SARA/NY Design Award of Merit.

Rice+Lipka Architects
Principals: Lyn Rice & Astrid Lipka
Project Architect: Benjamin Cadena
Project Manager: Karl Larson
Project Team: Andrew Dadds, Christina Nguyen

Structural: Buro Happold
Environmental: Buro Happold
Lighting: Richard Shaver Architectural Lighting
Acoustics: Lally Acoustical Consulting
Audiovisual: InToTo
